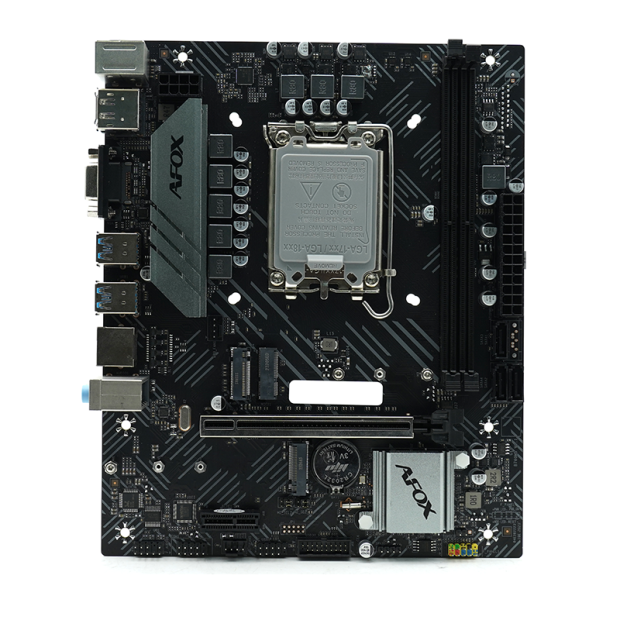

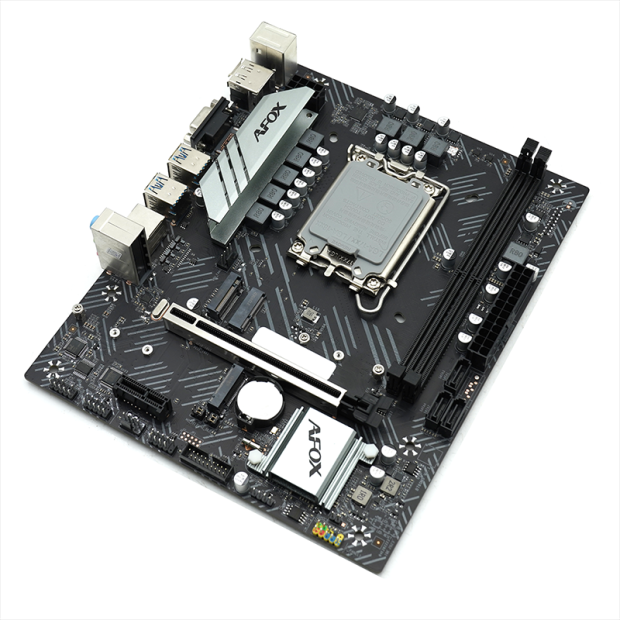

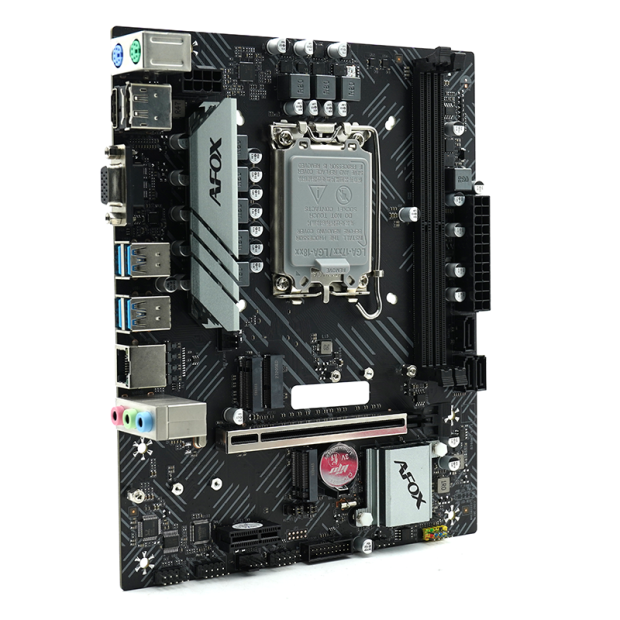

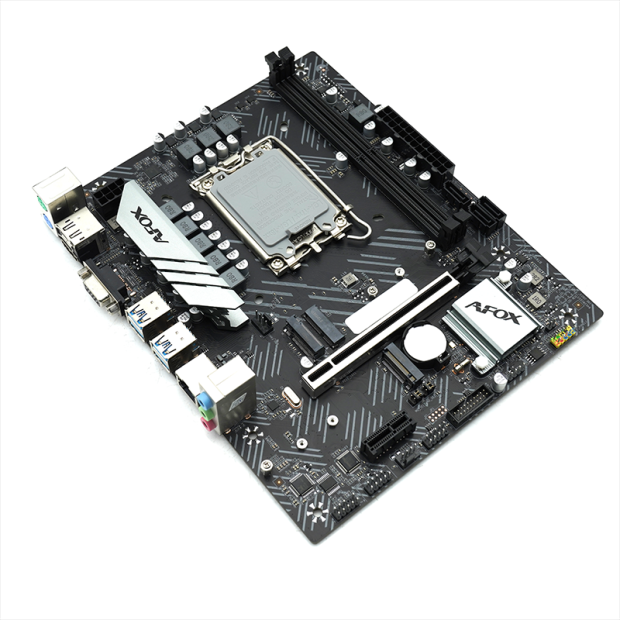

AFOX Z790D5-MA-V2

Description

Technical Specifications

• Platform :Intel Socket 1700
• Model Name :Z790D5-MA-V2
• Chipset:Intel® Z790
• CPU Support:Supports Intel 12th / 13th / 14th Generation Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
• Front Side Bus (FSB):4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz
• Memory:Dual Channel DDR5 4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz, 1.1V/2 x Memory Slots (Max. capacity of system memory 64GB)
• Onboard Graphics:Intel® HD Graphics
• PCI/PCI-E Slots: PCI Express x16 4.0 slot/PCI Express x1 slot/Mini PCI-E Slot (Supports 4G/WIFI Module)
• Storage:  SATA III/ M.2 (1 x PCIe NVMe Gen4 x4 & SATA3)
• Audio: Realtek 662 /897 on board, Supports 6-channel audio-out
• LAN: 1000Mbps Ethernet on board
• Back Panel I/Os:  D-Sub (VGA) Port /HDMI Port/DP Port/PS/2 Mouse Port/PS/2 Keyboard Port/USB 3.0 Ports/RJ-45 LAN Port/HD Audio Jack (Line in / Front Speaker / Microphone)
• On-Board Pinheaders/Connectors: USB 2.0 pinheader (supports additional 2 USB 2.0s)/USB 3.0 pinheader (supports additional 2 USB 3.0s)/Front Panel Audio pinheader/Com
• BIOS:UEFI BIOS
• Form Factor:Micro-ATX (18*22cm)
• Mounting:6 mounting holes
• Accessories: SATA II cable/I/O Rear Panel/ User Manual/Driver CD
