Ubnt RD-5G30

Product Description:

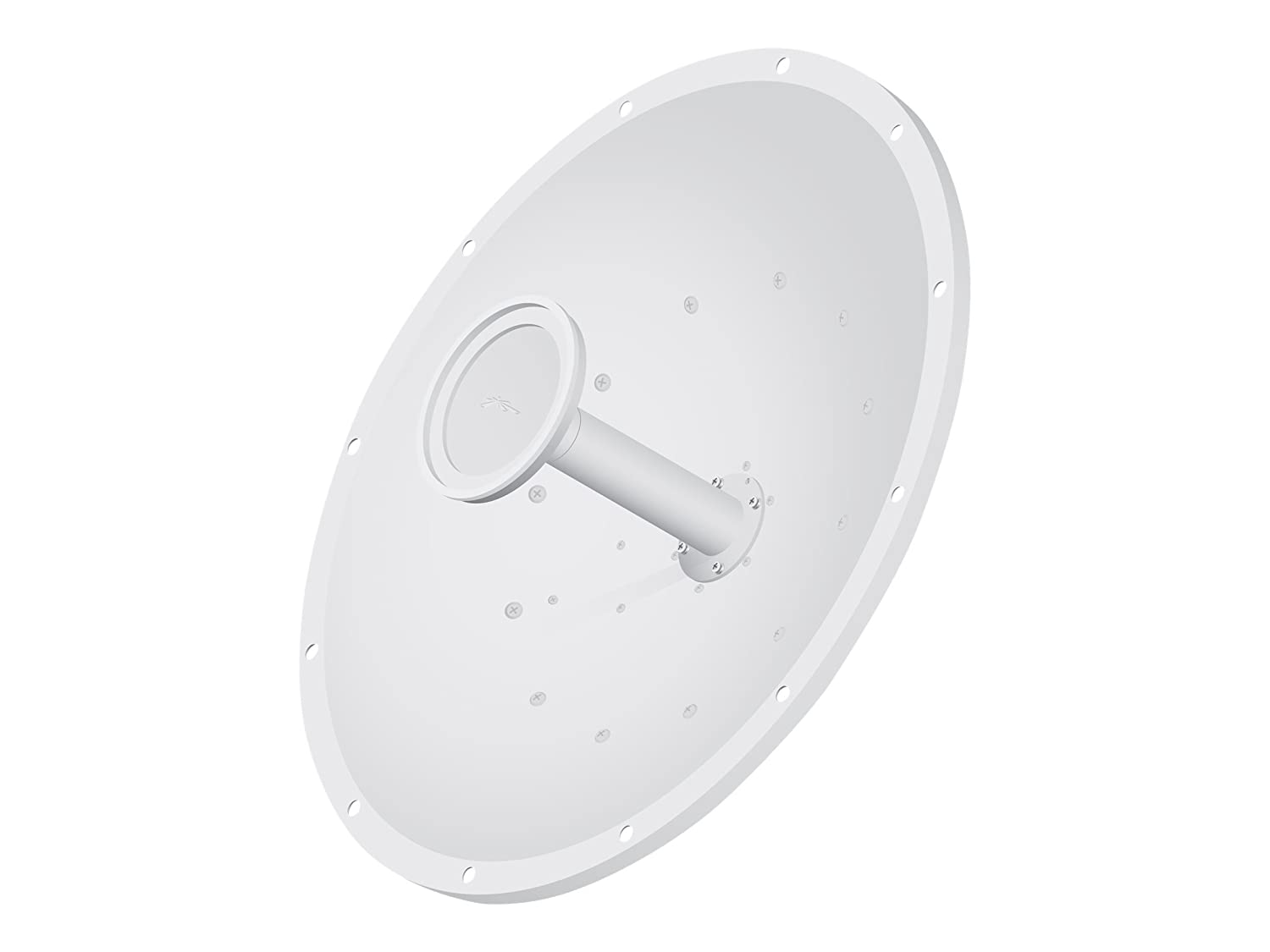

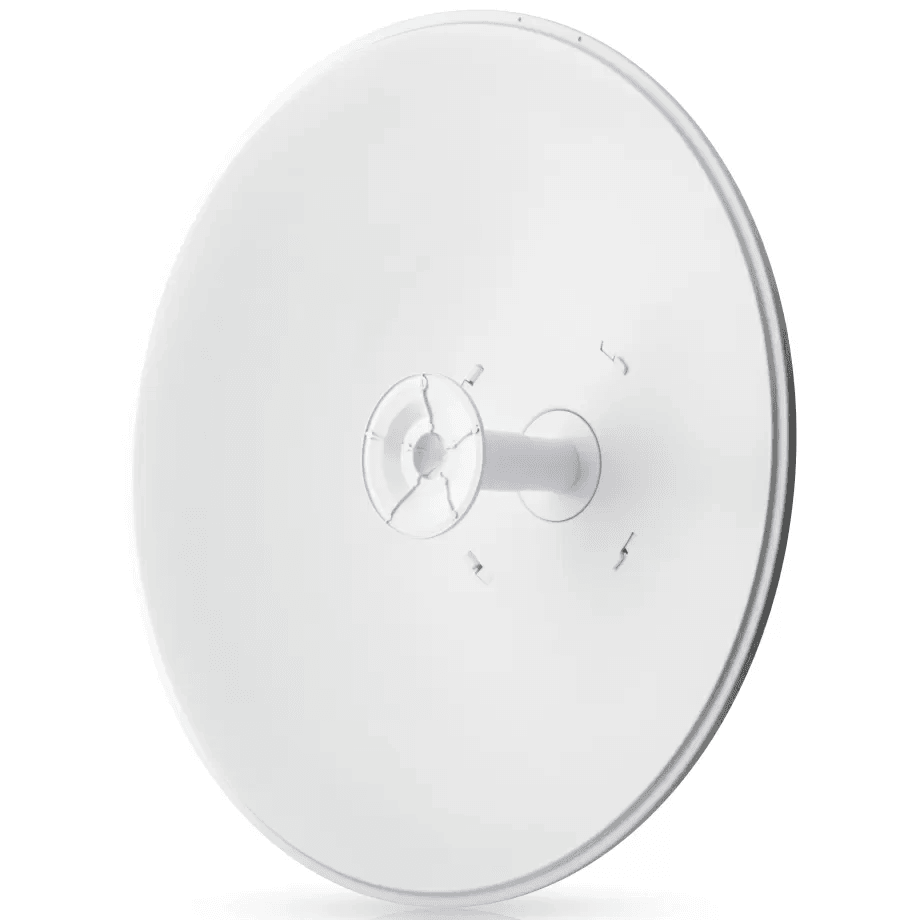

Ubiquiti Networks RD-5G30 RocketDish AirMax 2×2 PtP Bridge Dish Antenna

Technical details:

  • Brand ‎: Ubiquiti Networks
  • Model : ‎RD-5G30
  • Model Year : ‎2013
  • Product Dimensions : ‎70 x 70 x 19 cm; 9.8 Kilograms
  • Item model number : ‎RD-5G30
  • Standing screen display size : ‎25.5 Inches
  • Colour Screen :  ‎No
  • Batteries Included : ‎No
  • Batteries Required : ‎No
  • Includes Rechargable Battery : ‎No
  • Remote Control Included? ‎No
  • Supports Bluetooth Technology :  ‎No
  • Programmable Buttons : ‎No
  • Country of Origin ‎: China
  • Item Weight : ‎9 kg 800 g

Description

Product introduction:

The RD-5G30 RocketDish AirMax 2×2 PtP Bridge Dish Antenna from Ubiquiti Networks features a gain of 30 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support.

Product Highlights:

  • Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
  • Eliminates hidden node collisions and maximizes airtime efficiency
  • Provides scalability, high throughput, and low latency in unlicensed multipoint networks
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Supports high-speed, carrier-class links
  • Rocket M GPS units seamlessly integrate with AirMax RocketDish Antennas to enable you to utilize Ubiquiti AirSync GPS Synchronization technology
  • AirSync technology enhances the hardware and software of Rocket M to use GPS signals for precision timing
  • GPS Signal Reporting: Easily manage/monitor GPS satellite signals using AirOS software (not included)
  • No Co-Location Interference: Synchronized transmission among Rocket M GPS-powered BaseStations (available separately) effectively eliminates co-location interference
  • Channel Re-Use: Frequency reuse for increased scalability

Product key features:

  • 5 GHz Operating Frequency
  • 30 dBi Gain

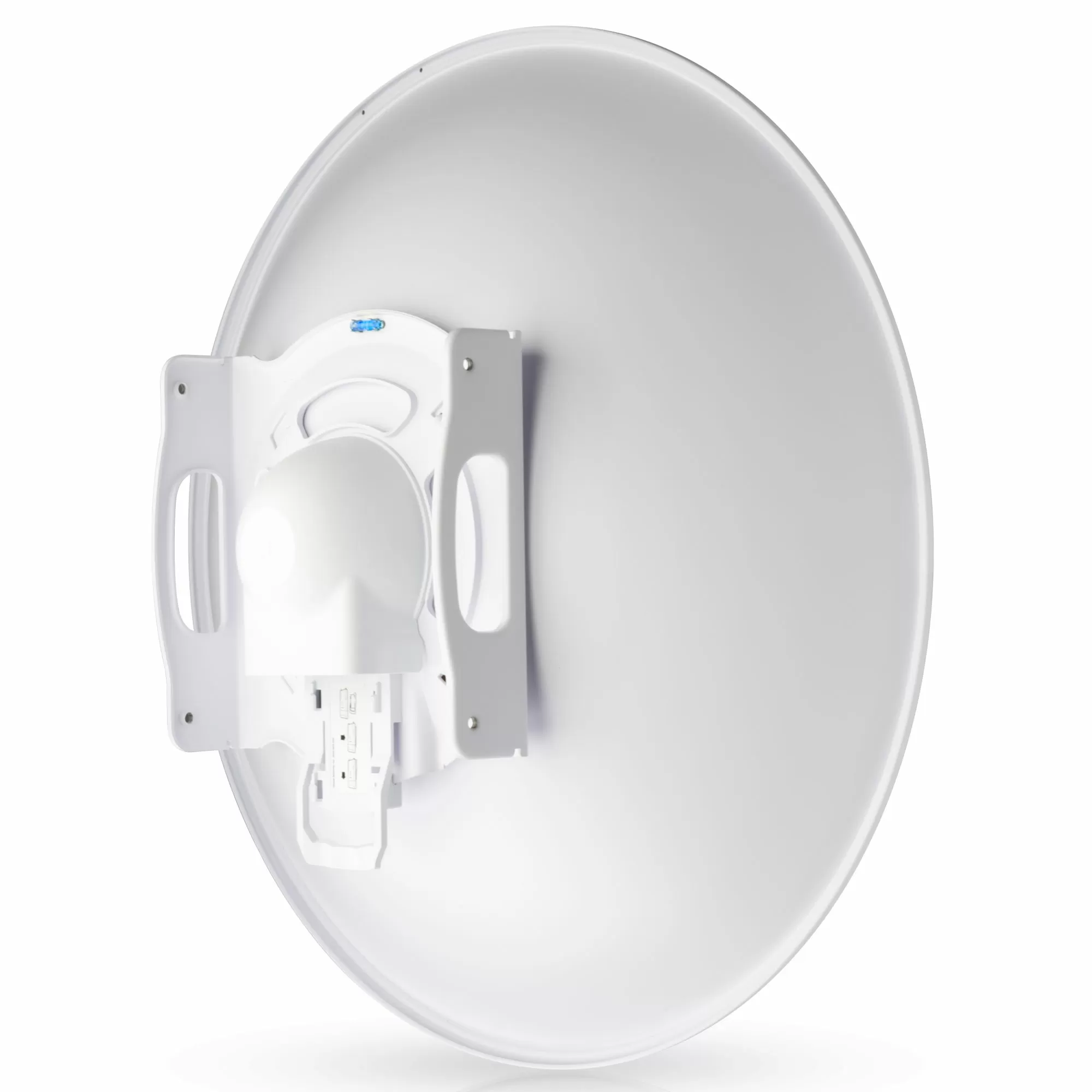

  • Built-In Rocket Mount
  • Protective Shroud
  • For Outdoor Use

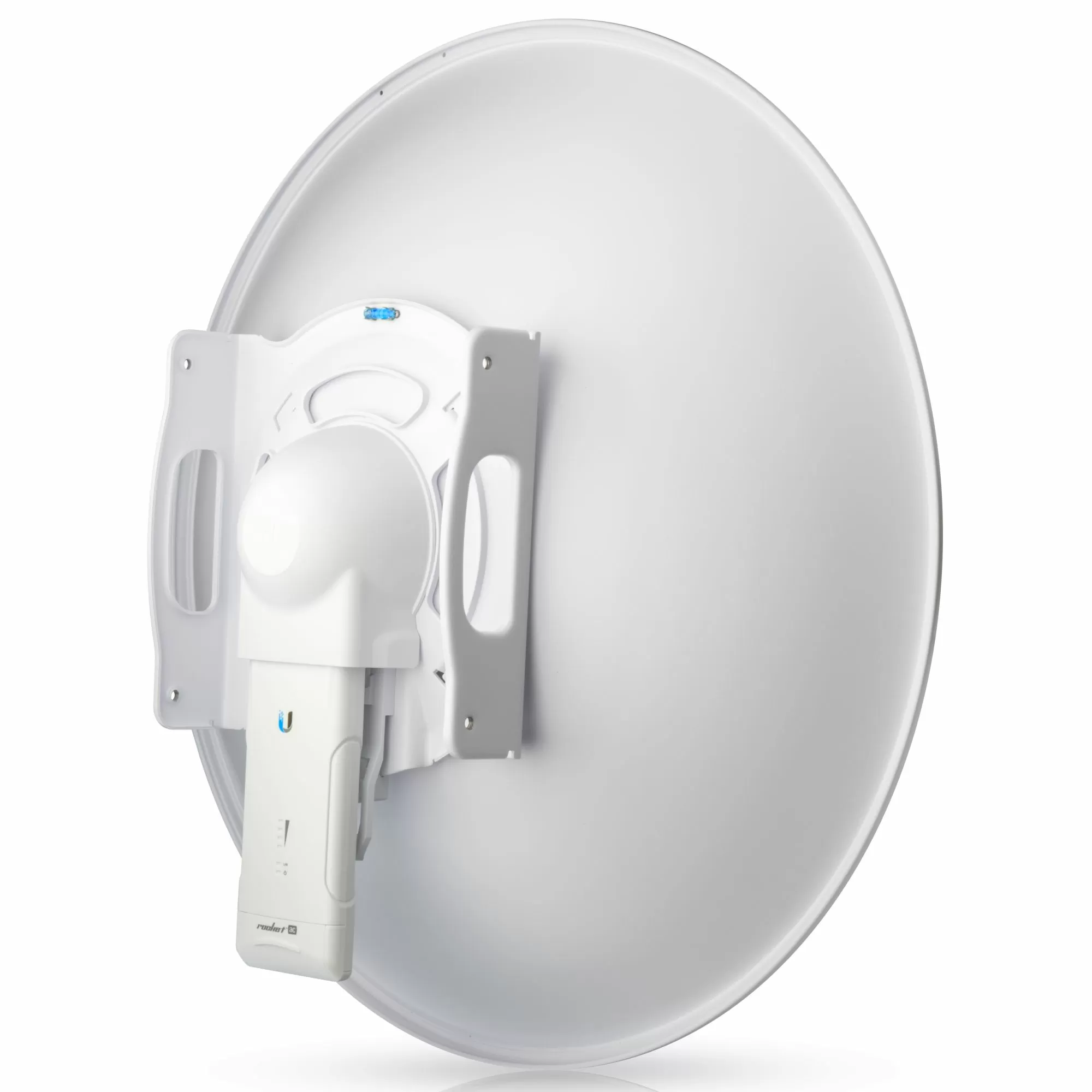

  • Compatible with Rocket M BaseStation.
