Ubnt PBE-5AC-500

Product Description:

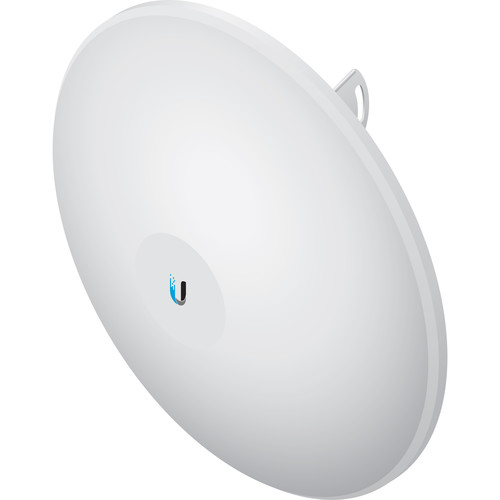

Ubiquiti Networks PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge (2-Pack).

Technical details:

  • Brand : ‎Ubiquiti Networks
  • Manufacturer : ‎Ubiquiti Networks
  • Item Height : ‎29.21 Centimeters
  • Item Width : ‎88.27 Centimeters
  • Product Dimensions ‎: 67.31 x 88.27 x 29.21 cm; 670 Grams
  • Item model number : ‎PBE-5AC-500-ISO-US
  • Are Batteries Included : ‎No
  • Manufacturer : ‎Ubiquiti Networks
  • Item Weight : ‎670 g.
Chat to Order

Description

Product introduction:

The PowerBeam ac’s enhanced beam directivity provides optimal performance in high-noise environments. The TDMA airMAX protocol enables optimal scalability, high throughput, and low latency in unlicensed, multi-point networks. It supports airMAX ac protocol and has a long-range Point-to-Point (PtP) link mode. This offers selectable channel width of 10/20/30/40/50/60/80 MHz in PtP and 10/20/30/40 MHz in PtMP. Integrated airMAX ac technology boosts the advantages of proprietary TDMA protocol. The mounting bracket of the PowerBeam offers 20° of uptilt and 10° of downtilt, while the mounting bracket offers ± 15° of tilt.

Product Highlights:

  • Noise Immunity – The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, to improve noise immunity. This feature is important in an area crowded with other RF signals of the same or similar frequency.
  • Integrated Design – Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.
  • airOS – Designed for improved usability, airOS v7 is the enhanced operating system for Ubiquiti airMAX ac. It supports airMAX ac protocol and has long-range Point-to-Point (PtP) link mode. This offers selectable channel width of 10/20/30/40/50/60/80 MHz in PtP and 10/20/30/40 MHz in PtMP. Additionally, this PowerBeam features automatic/manual transmit power control, automatic distance selection (ACK timing), and a strong WPA2 security.
  • Usability Enhancements – airOS offers usability enhancements such as dynamic configuration changes*, instant input validation, HTML5 technology, optimization for mobile devices, detailed device statistics, comprehensive array of diagnostic tools, including Ethernet cabling test, RF diagnostics, and airView spectrum analyzer.

Product key features:

  • Atheros MIPS 74Kc, 720 MHz Processor
  • 128 MB DDR2, 8 MB Flash Memory
  • 450+ Mb/s Transfer Speed
  • 16+ mi (25+ km) Range
  • airOS v7 Operating System
  • Time Division Multiple Access (TDMA)
  • InnerFeed Technology
  • Multi-Radio Architecture
  • Next Generation airMAX ac Technology
  • Selectable Channel Width.

Download More Details
