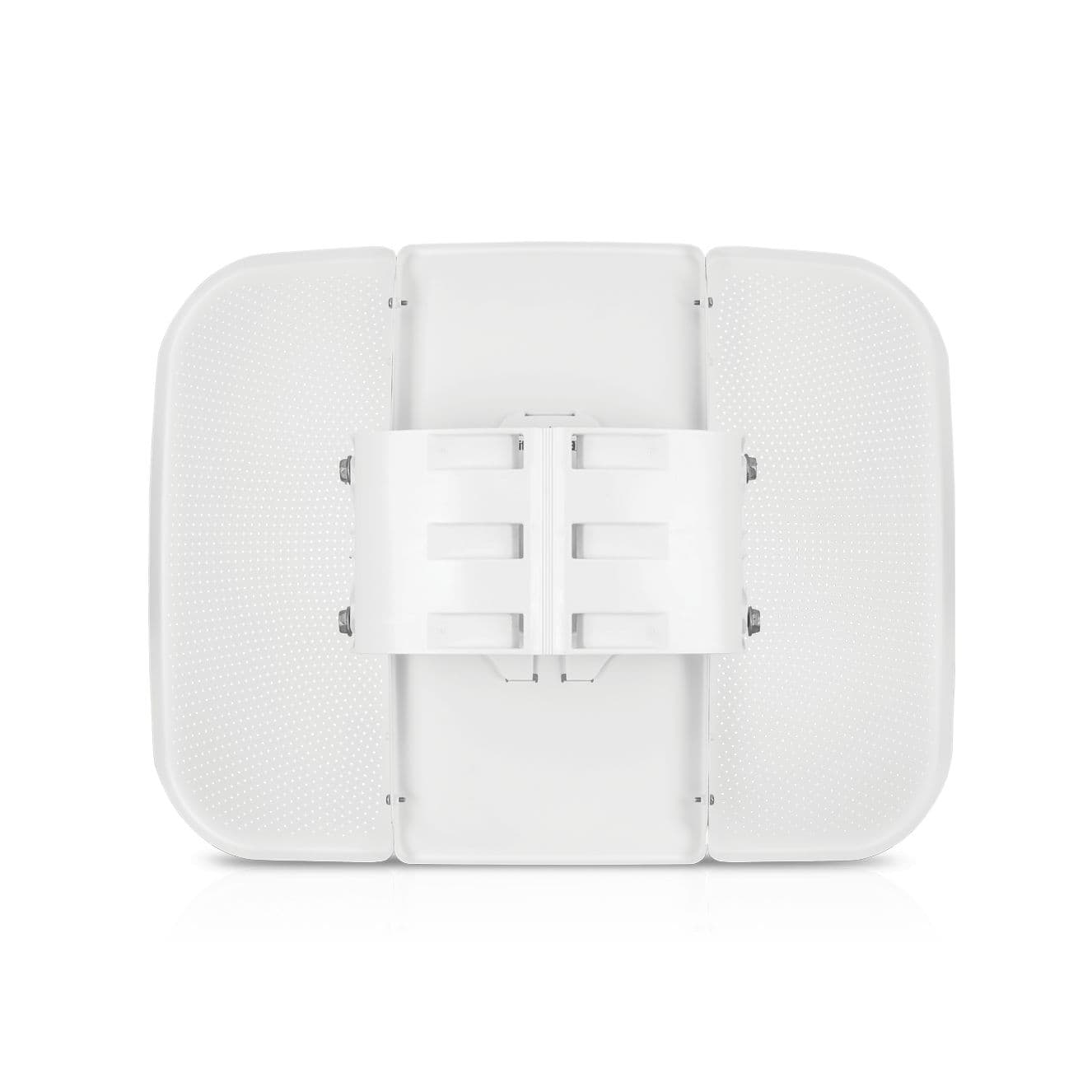

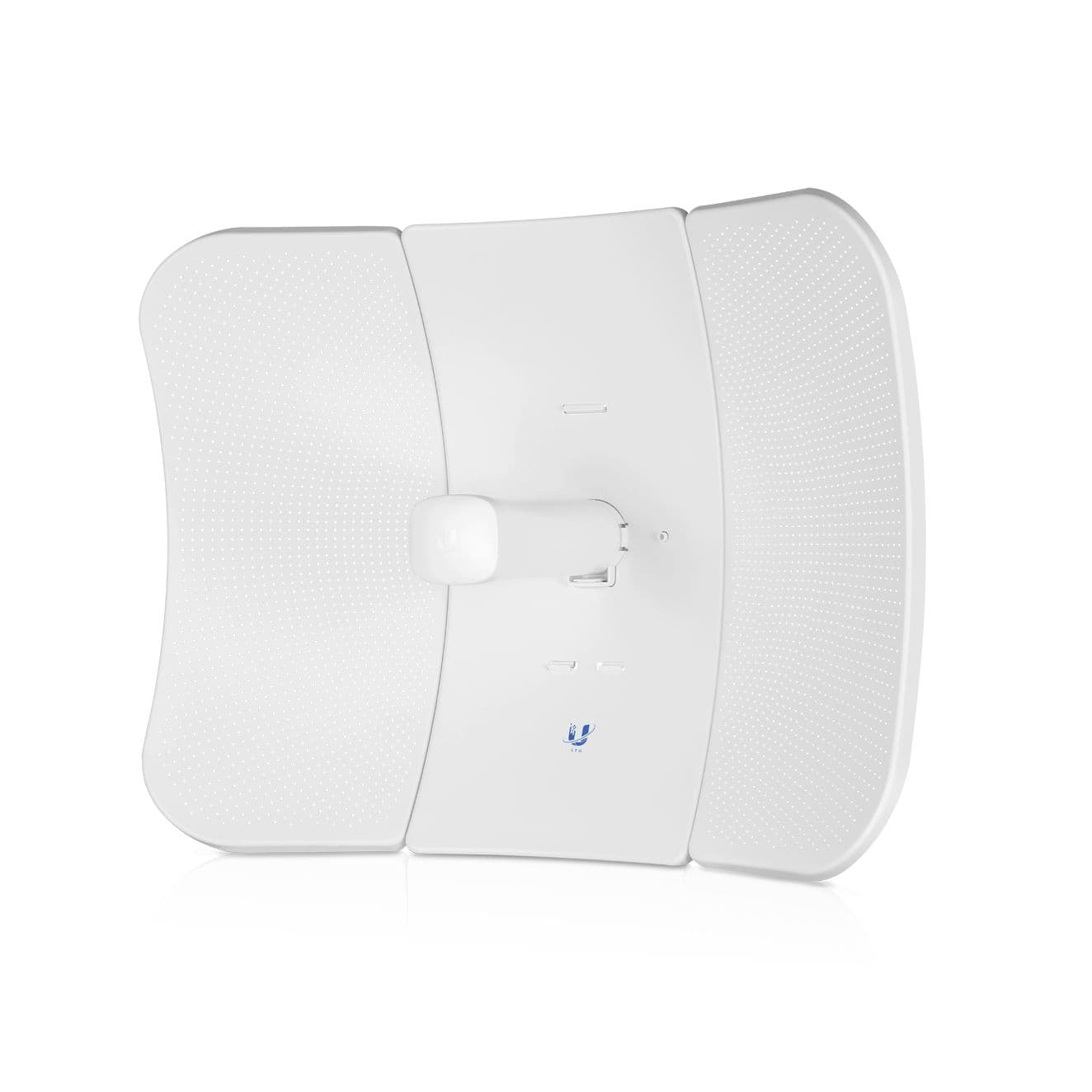

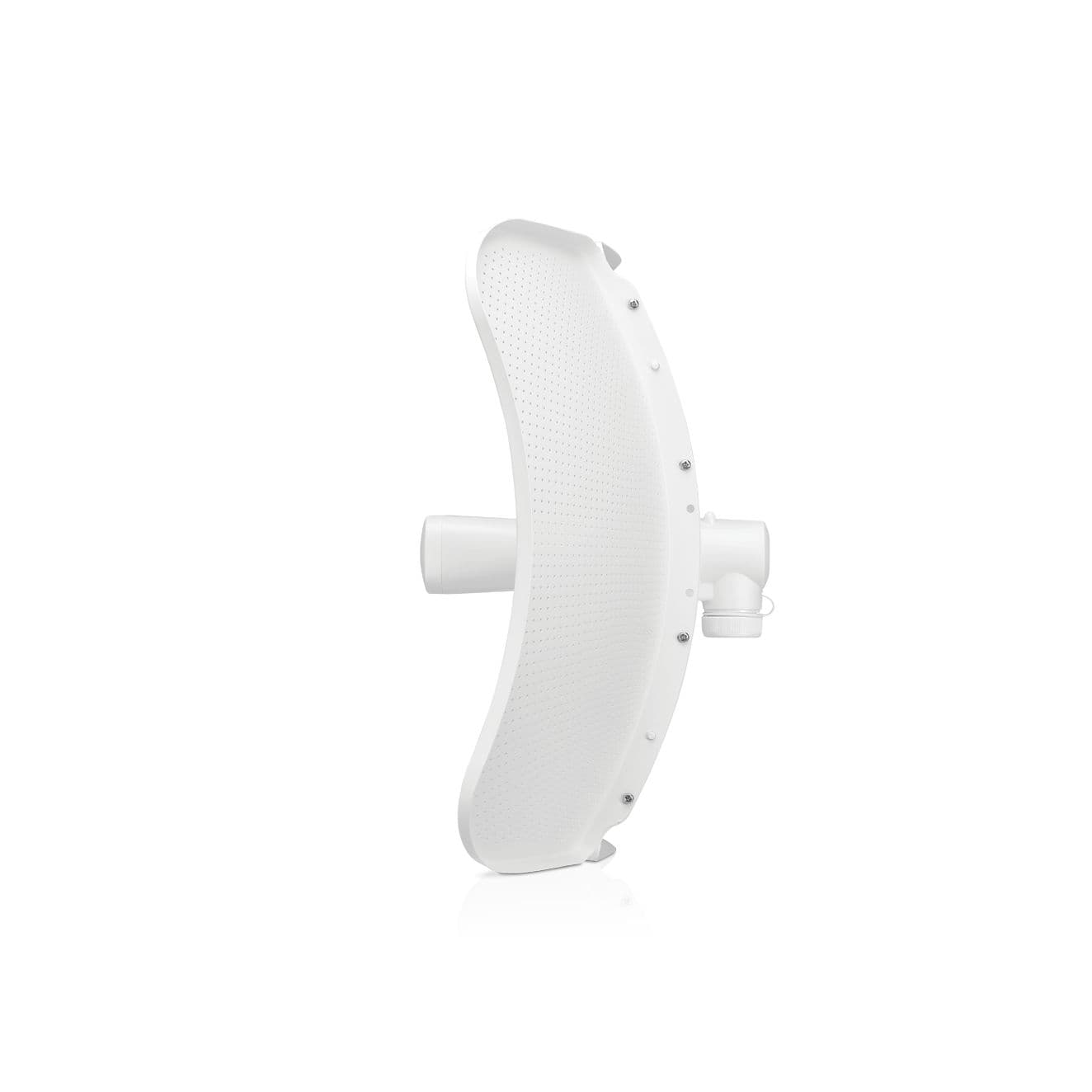

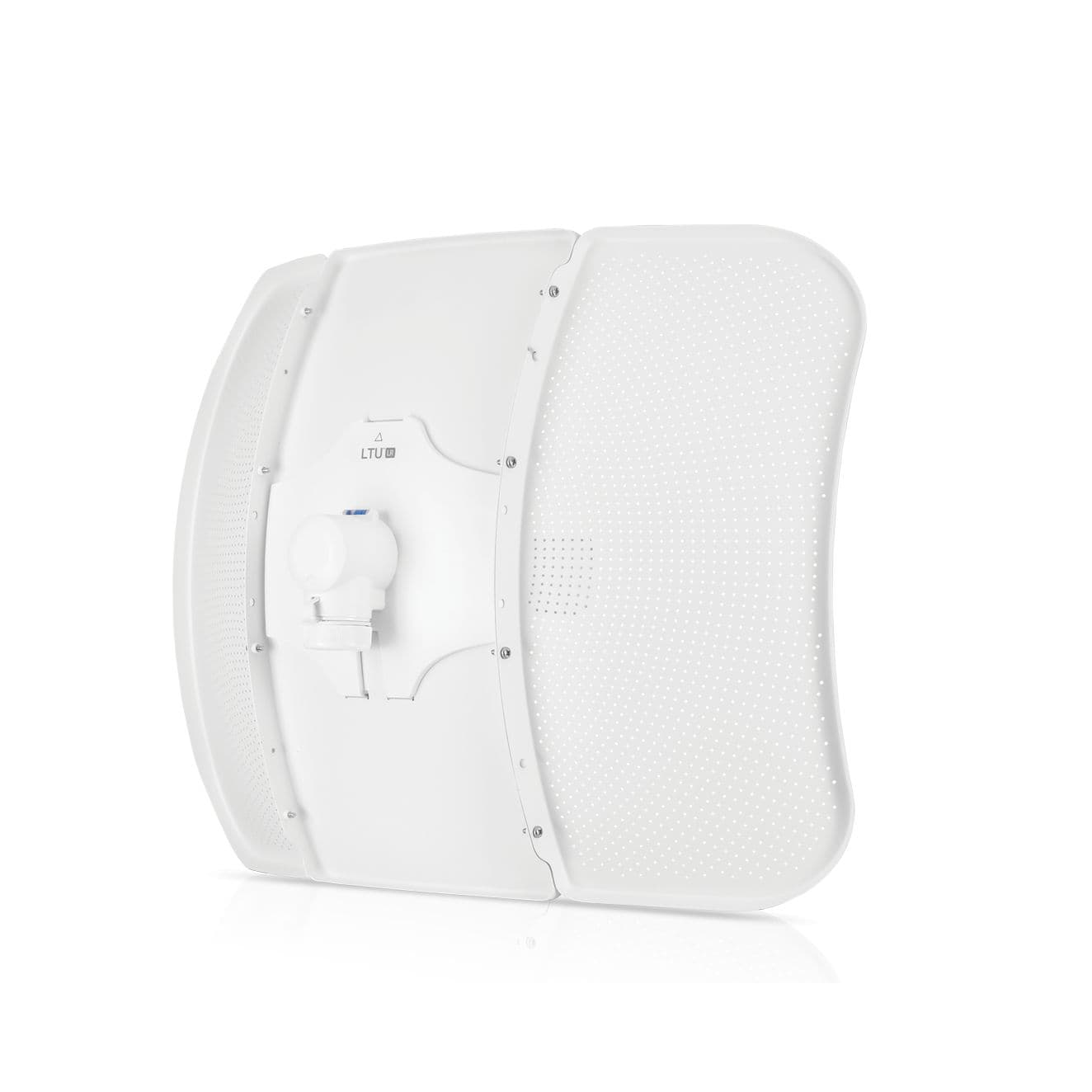

Ubnt LTU LR

Product Description:

5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Technical details:

  • Dimensions : 512.5 x 385.75 x 258.3 mm
  • (20.18 x 15.19 x 10.17″)
  • Weight
  • With Mount
  • 360 kg (2.998 lb)
  • 735 kg (3.825 lb)
  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Enclosure Outdoor UV Stabilized Plastic
  • Power Consumption : 8.5W
  • Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method 24V Passive PoE (Pairs 4, 5+ ; 7, 8- )
  • Voltage Range :  22 – 26V
  • Conducted TX
  • Power
  • 22 dBm (per Chain)
  • Gain 26 dBi
  • Mounting Pole : Mount (Kit Included)
  • Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
  • Wind Survivability 200 km/h (125 mph)
  • ESD/EMP Protection : ± 24kV Contact/Air
  • Operating Temperature : -40 to 60° C (-40 to 140° F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : CE, FCC, IC

Description

Product introduction:

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

Product Highlights:

  • Auto Power Adjustments – By default, the Auto Output Power option allows the LTU LR to set the output power (EIRP) to the appropriate level.
  • Signal Control – The LTU LR’s TX output power is controlled by the AP’s target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
  • Convenient Configuration – To manage the LTU LR, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU LR.

Product key features:

  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router mode support
  • Range up to 30km
  • Functions in a PtMP environment with the LTU-Rocket as the basestation.
