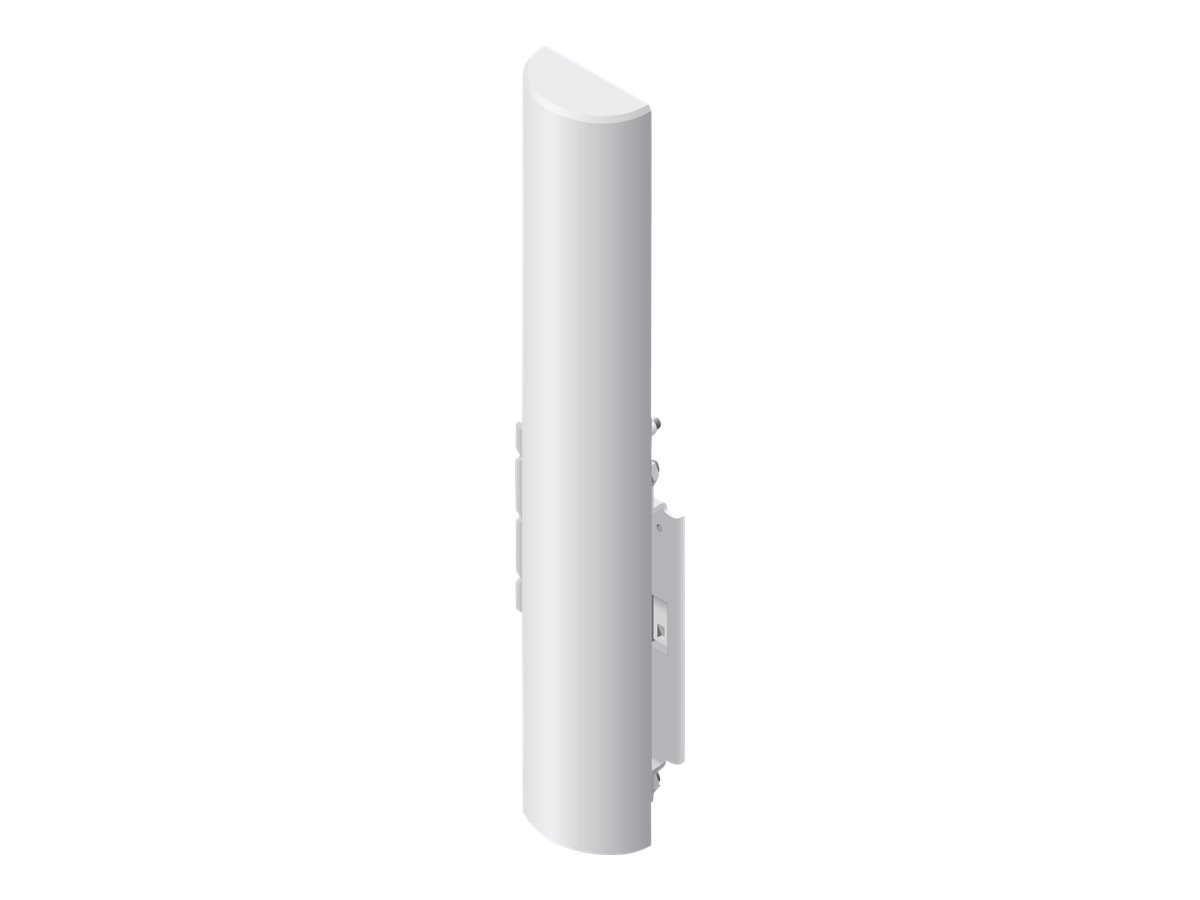

Ubiquiti AM-5G16-120

Product Description:

Ubiquiti Airmax AM-5G16-120(4.9-5.9ghz) Airmax Base Station.

Technical details:

  • Brand : ‎Ubiquiti
  • Manufacturer : ‎Ubiquiti
  • Item Height : ‎41 Millimeters
  • Item Width : ‎36.7 Centimeters
  • Product Dimensions : ‎6.3 x 36.7 x 4.1 cm; 1.1 Kilograms
  • Item model number : ‎AM-5G16-120
  • Voltage :  ‎240 Volts
  • Are Batteries Included : ‎No
  • Manufacturer : ‎Ubiquiti
  • Item Weight : ‎1 kg 100 g.
Category: Tag:

Description

Product introduction:

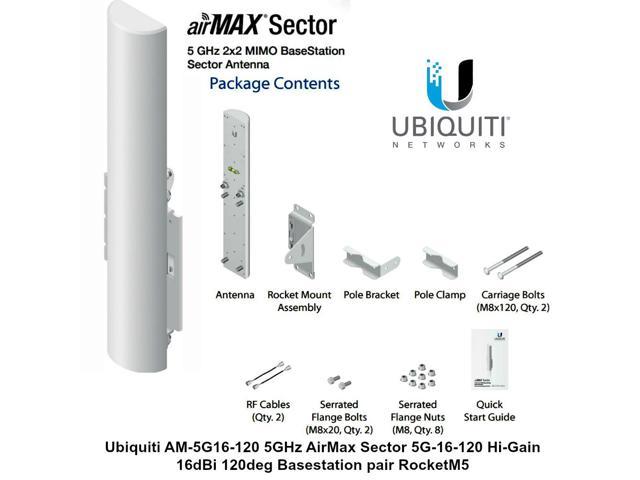

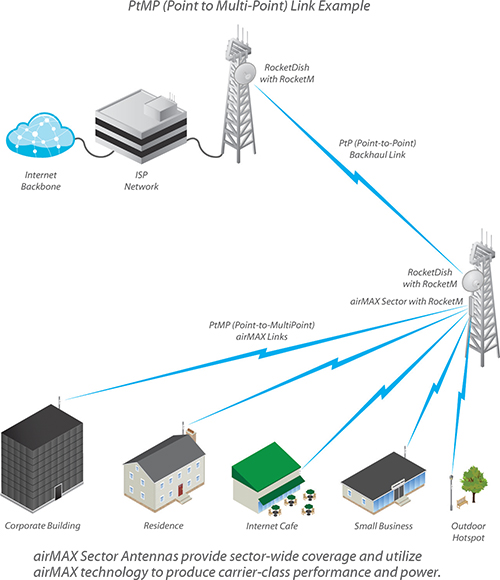

Overview Instantly pairs with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Mating bracket and weatherproof RF jumpers included. Features Frequency range: 5.10-5.90 Ghz Gain: 15.0-16.0dBi Polarisation: Dual linear Cross-pol isolation: 22dB min. Max VSWR: 1.5:1 Hpol beamwidth (6dB): 137 deg. Vpol beamwidth (6dB): 118 deg. Elevation beamwidth: 8 deg. Elevation downtilt: 4 deg. Dimensions: 367 x 63 x 41mm Weight: 1.1kg

Product Highlights:

Ubiquiti 2×2 MIMO BaseStation Sector Antenna – Range – SHF – 5.10 GHz to 5.85 GHz – 16 dBi – Base StationSector – Omni-directional.

Download More Details
