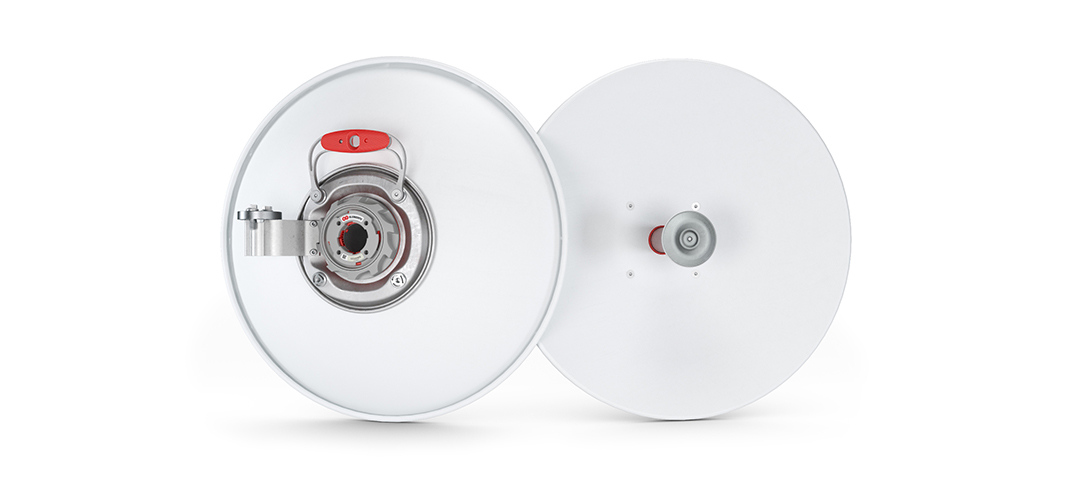

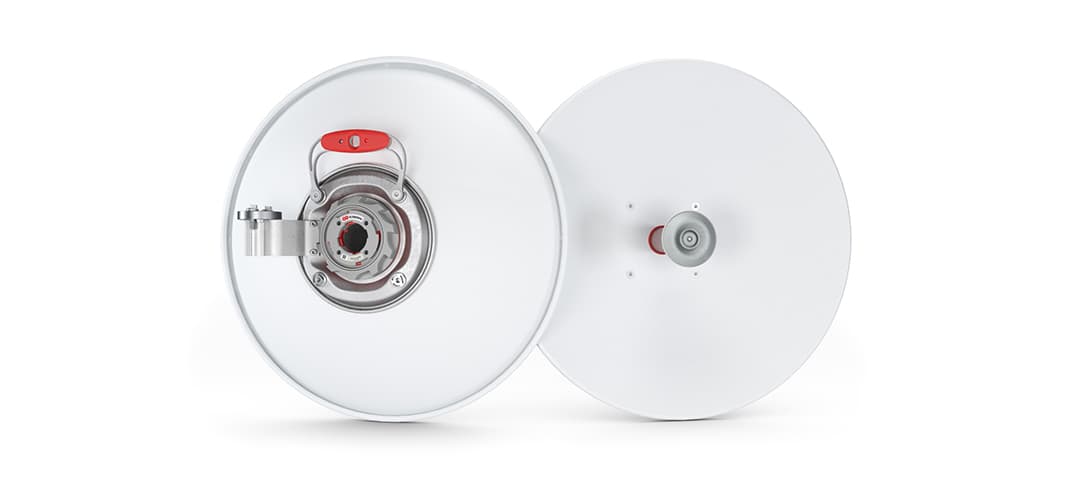

RF Elements UltraDishTM 29 WB

• Antenna Connection :TwistPort^TM – Quick Locking Waveguide Port
• Antenna Type :Parabolic Dish
• Enviromental :IP65
• Frequency Range :4900 – 7125 MHz
• Pole Mounting Diameter :40-80 mm
• Temperature :-40 to +60 °C (-40°F to +140°F)
• Wind Survival :160 Km/h
• Antenna Compatibility : Any TwistPort^TM Adaptor with TwistPort^TM connector

Key Features of the UltraDish 29-WB

• Frequency Range: Covers a wide bandwidth of 2,225 MHz, specifically designed for the 5 and 6 GHz unlicensed spectrum.
• Gain: Delivers a nominal gain of 29 dBi, ensuring strong signal strength and coverage.

Design and Build Quality

• Construction: Made from high-grade aluminum, providing excellent durability and resistance to harsh outdoor conditions, including saltwater environments.
• Weight: Lightweight design at 4.2 kg (9.2 lbs), facilitating easier installation and handling.
• Mounting: Features a UBR mounting bracket with a dual pole clamp for enhanced stability.
• Ergonomics: Includes an integrated handle for easy deployment and optional side strut for increased wind resistance.

Connector and Compatibility

• TwistPort™ Connector: Equipped with a TwistPort™ waveguide connector, allowing for easy attachment to waveguides or coaxial connectors.

Performance Metrics

• VSWR: Excellent Voltage Standing Wave Ratio (VSWR) for improved efficiency.
• Beam Width: Azimuth and elevation beam widths of 5.5° at -3 dB, ensuring focused signal transmission.
• Front-to-Back Ratio: Achieves a front-to-back ratio of 40 dB, minimizing interference from behind the antenna.
• Polarization: Dual linear polarization (horizontal and vertical) for versatile signal handling.
